Kinematics

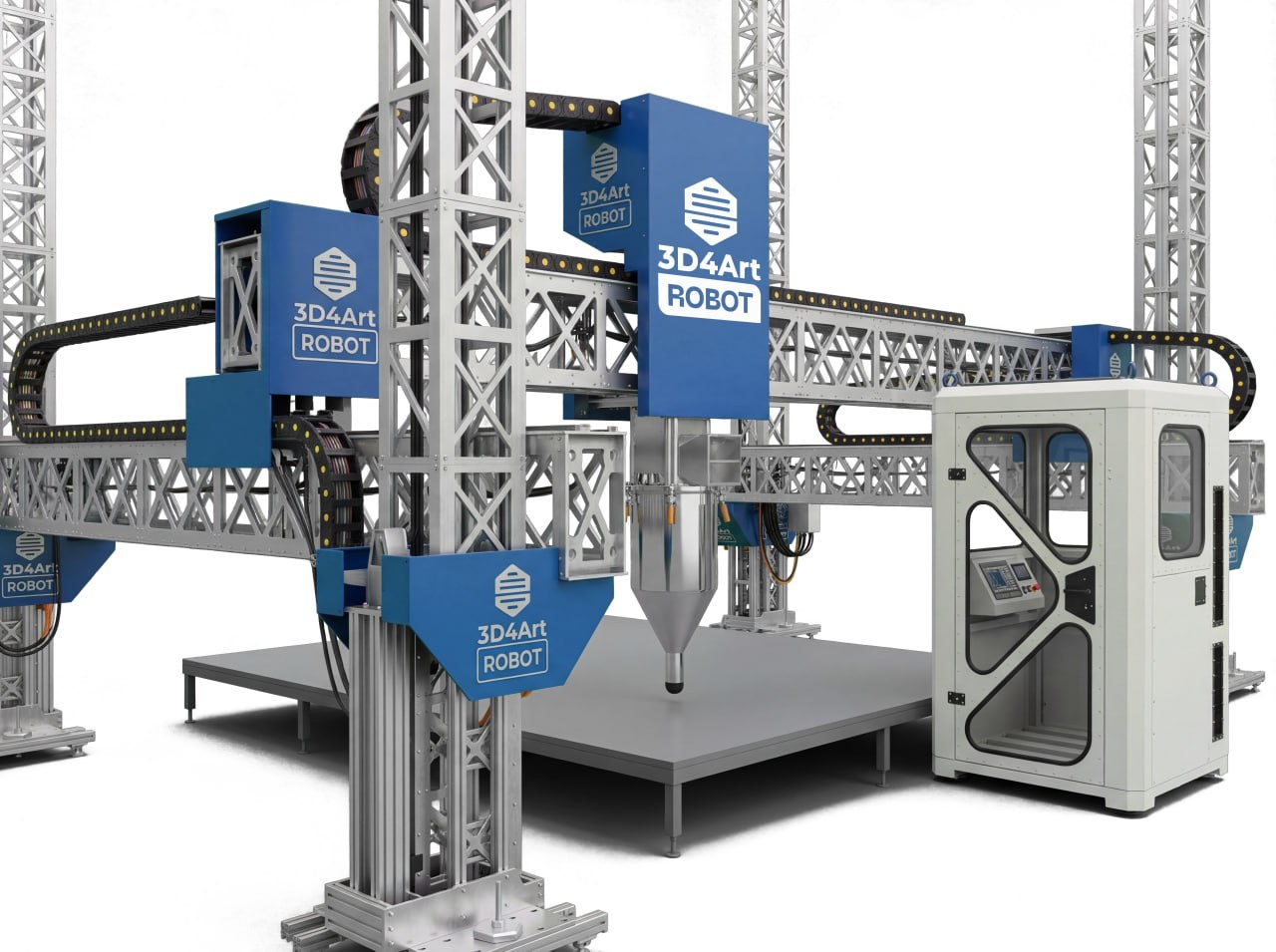

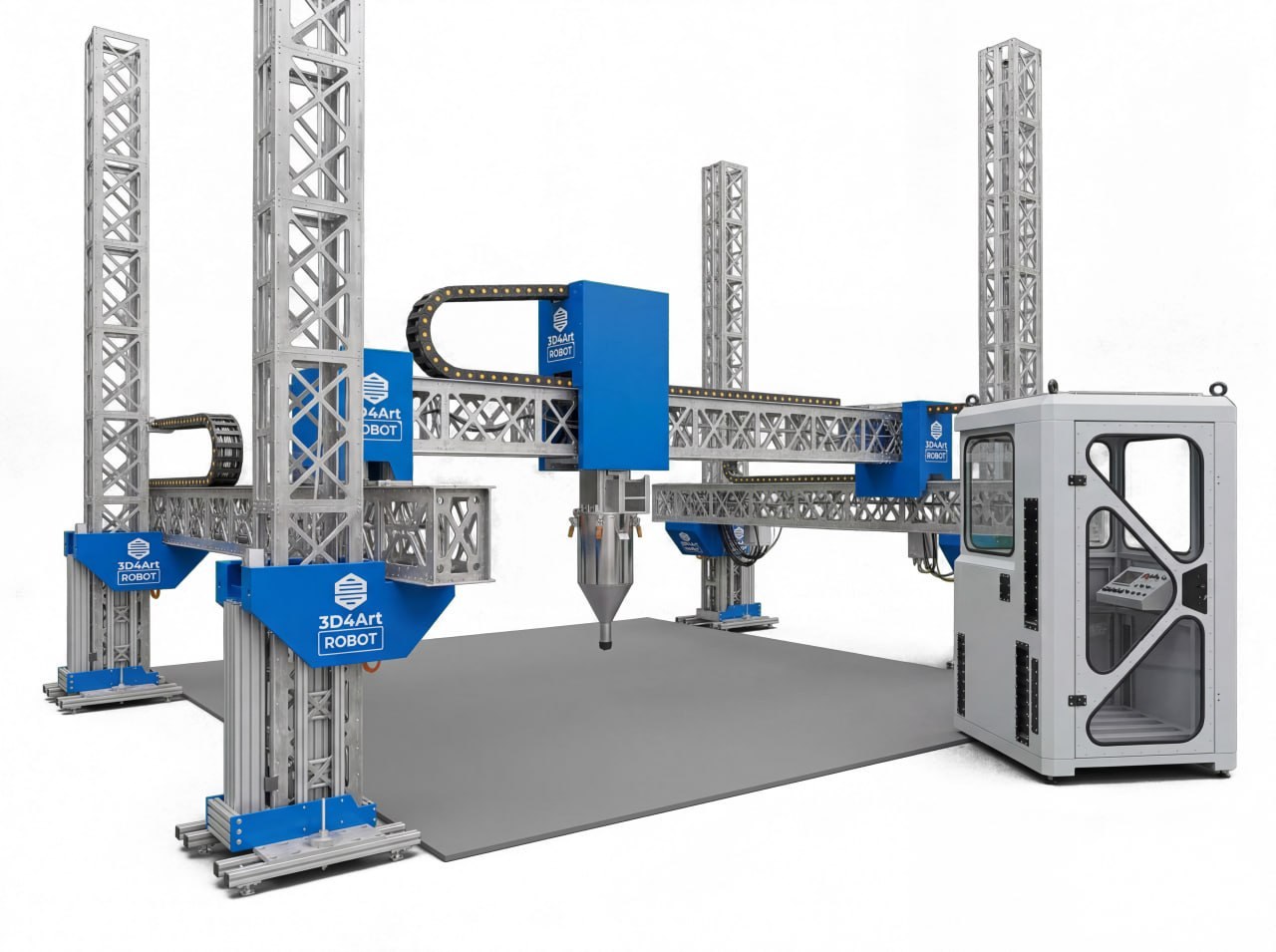

Gantry system on a rack-and-pinion drive. Rigid structure without beam sagging. Linear movements without backlash. High positioning repeatability.
Construction Printer

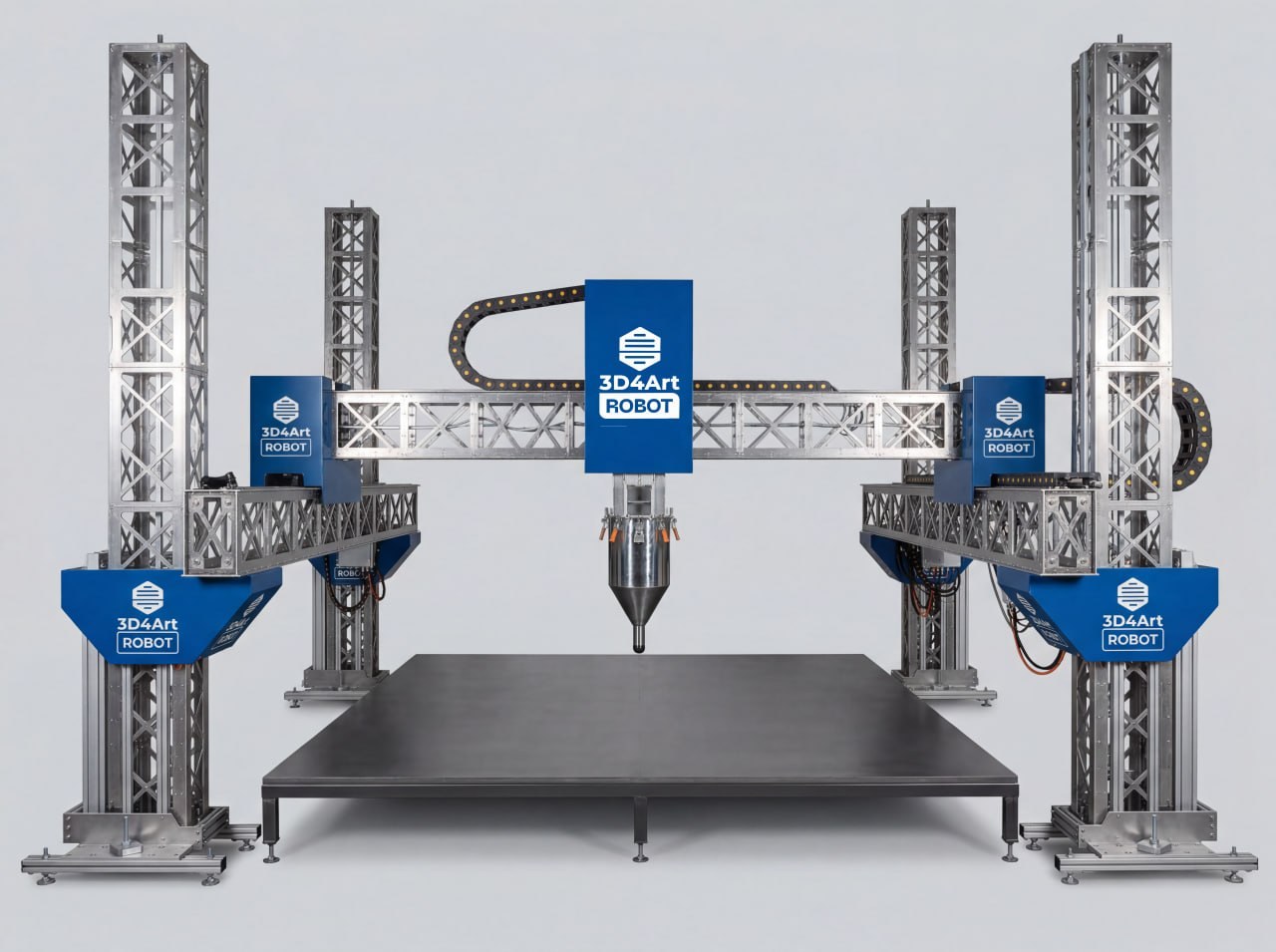

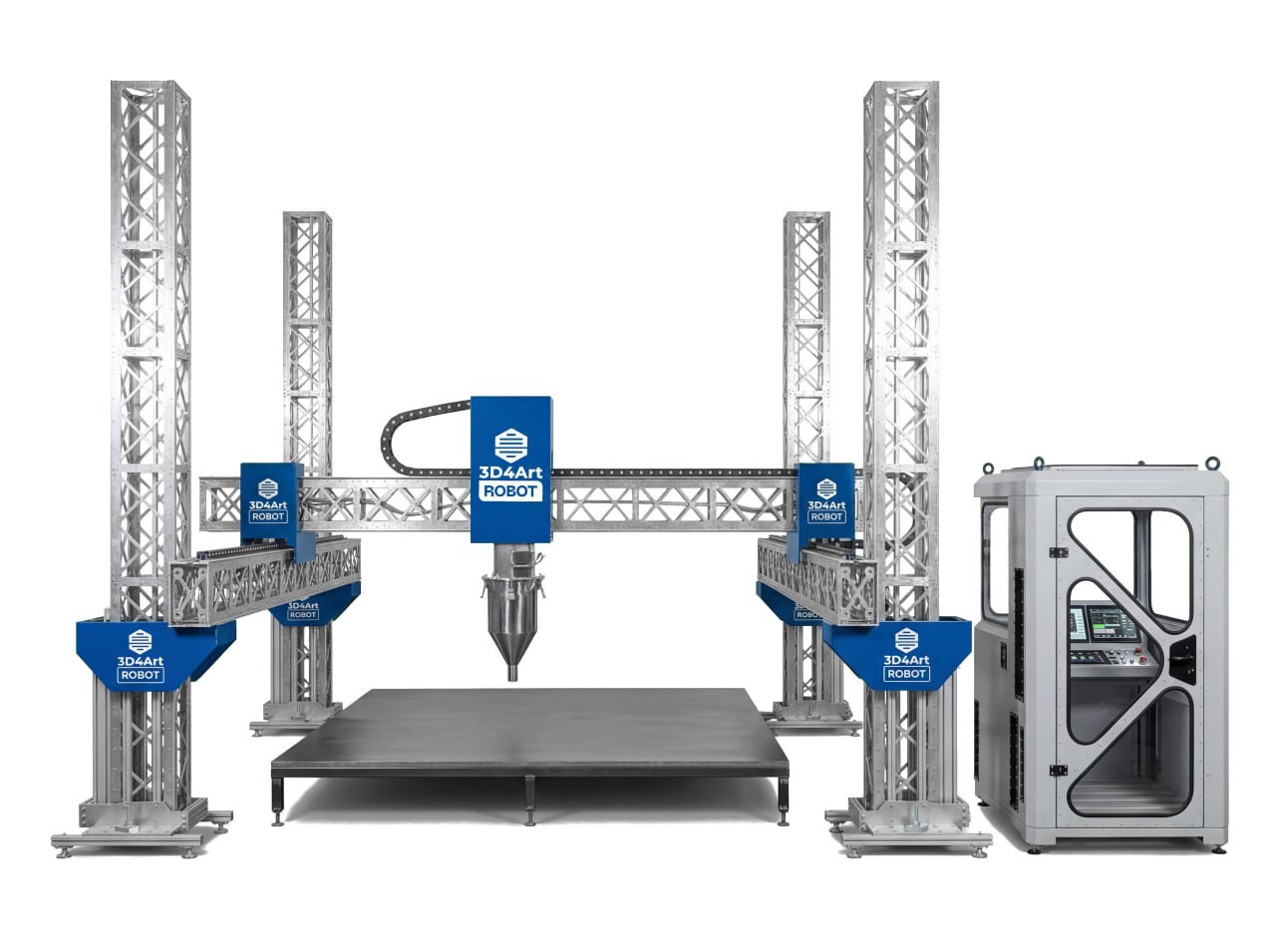

Construction Printer. Designed for the real construction site
Gantry kinematics on a rack-and-pinion drive. Screw pump with 4 lubrication circuits. Carbon and aluminum in the frame. Works via G-code, controlled from the slicer module. Operator at the extruder — monitors the layer visually and via monitor
Specifications and design
Key Specifications
Feed System
Screw pump with 4 automatic lubrication circuits. Hopper 120 L. Interchangeable nozzles: diameter from 20 to 50 mm.
Frame
Aluminum profiles and carbon elements. Structural rigidity with reduced weight.
Sensors and Control
Mixture level sensors in hopper. Position sensors along X-Y-Z axes. Cameras for visual print monitoring.
- Productivity1.35 m³/h
- Work AreaLength 16700 mm, Width 16200 mm, Height 8000 mm
- Printer DimensionsLength 17000 mm, Width 17500 mm, Height 11000 mm
- Travel Speedup to 35 m/min
- Printing Speedup to 15 m/min
- Positioning Repeatability2 mm
- Power Supply380V 12kW
